AMC OIL MODIFICATION SETUP FOR 1966 1/2-UP V8'S

This is a performance mofication setup courtesy of Richard Troxhall, a longtime AMCer in the Houston area. He has used this this setup repeatedly, and thru the years, his illustrations have helped others, as this appeared in several of the AMC Club of Houston newsletters when I was a Editor for 11 years; and since I traded newsletters with about 15-20 other AMC chapters and organizations, they used his information too. So hopefully you will be able to print Richard's pages here to help you also.

PAGE 1

PAGE 2

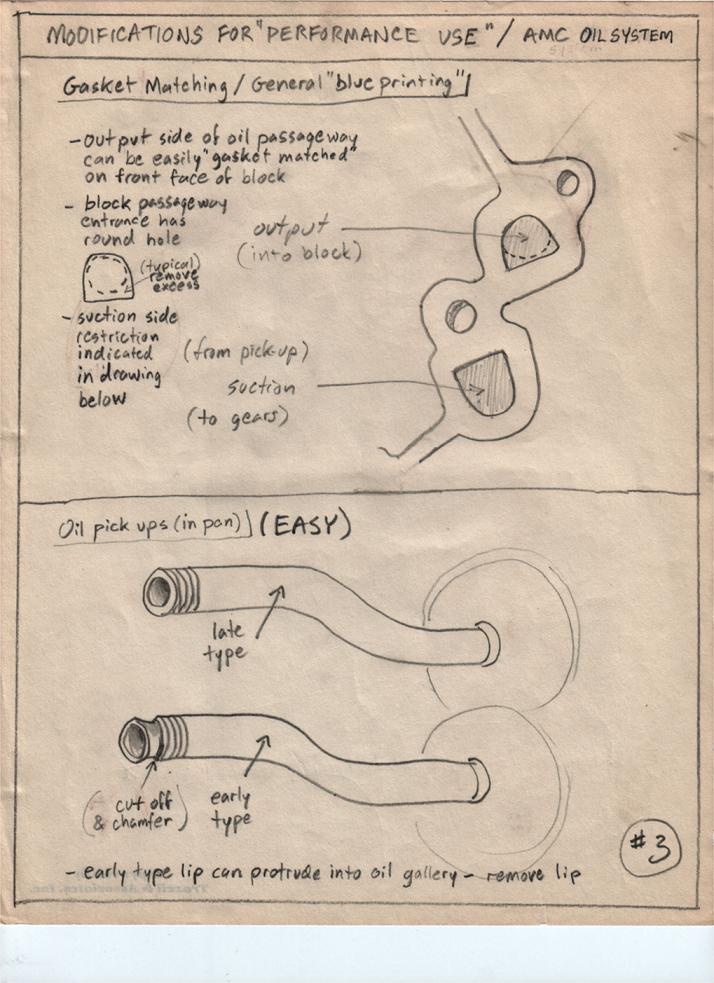

PAGE 3

PAGE 4

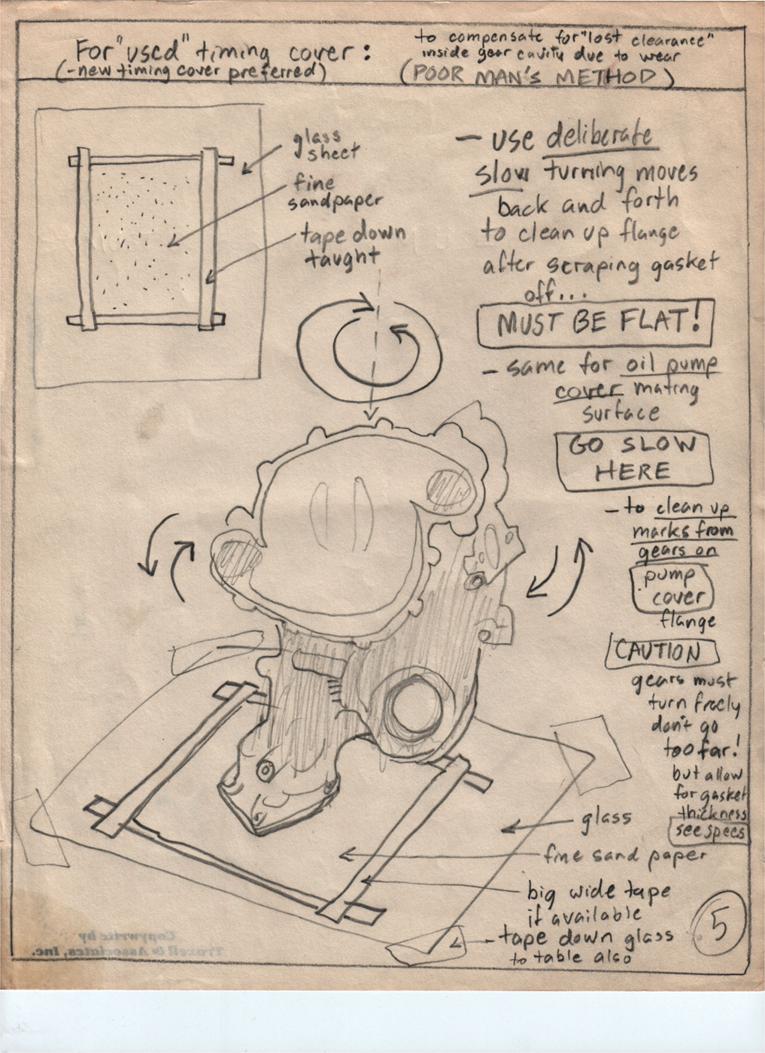

PAGE 5

PAGE 6
