AMERICAN MOTORS
BUILD SHEETS
================
Your friendly American Motors Dealer
would fill out a Car Purchase Order with a ball point pen after taking a order
from a customer. These Car Order Forms were usually 2-3 pages including carbon
copies. The Dealer would have to have the following information on the form to
submit to Zone Office. Dealer Name, Model, Exterior Color, Trim, Stripes
(only if Desired), Tires, Optional Axle Ratio (only if Desired) and
"X" Adjacent to options desired for the model being ordered. There
would not be any changes accepted after the order had been submitted to the
factory by the Zone Office.
These fragile pieces of paper is your car's DNA. It is a coded computer
printout of all the options, equipment, and trim installed at the factory! It was
used by assembly line workers to tell them how to build your car. If you

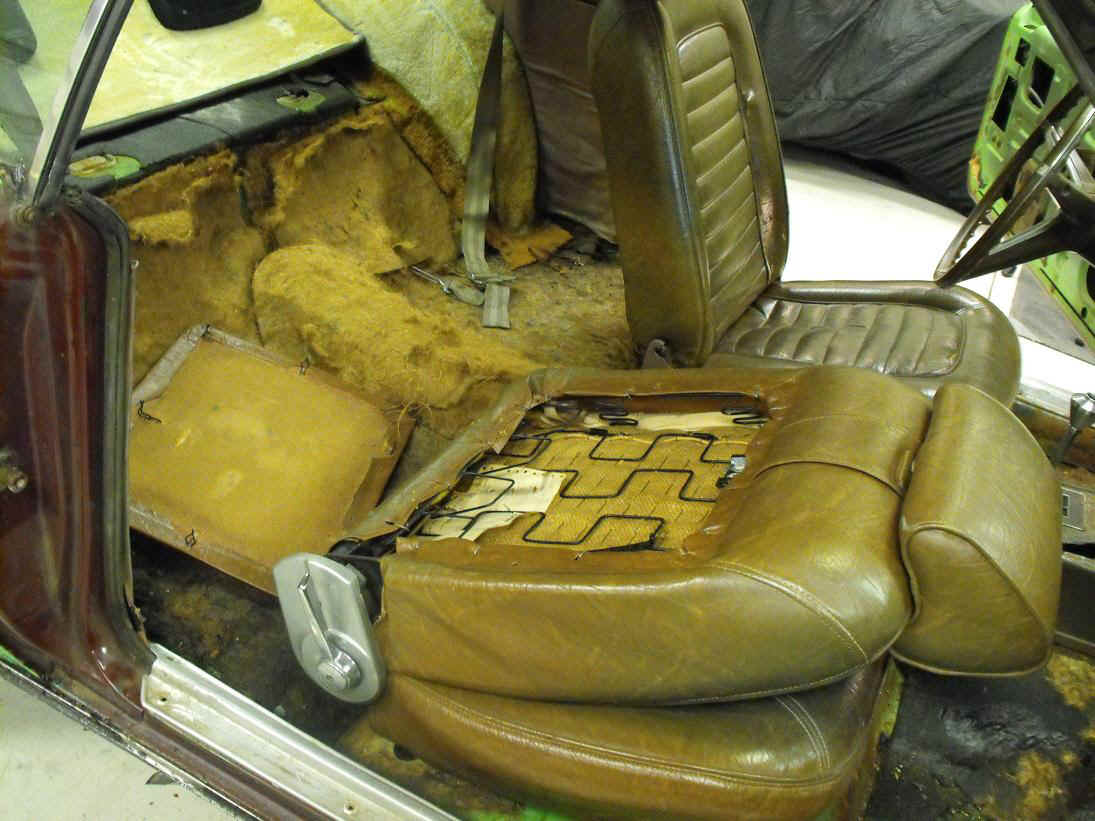

are really lucky the owner, or you, will have found the build sheet, which was usually stuffed in the seat springs under the rear seat, or in many 68-70
AMXs, in the back portion of the passenger seat. In later model AMCs sometimes it was stuffed or taped inside the passenger side door panel or
inside or above the glovebox! Some models have them under the carpet, inside the
passenger side seat upright, in the lower part of the rear seat, or in the upper
part of the rear seat. One AMX I parted out had it behind the headliner.
Consider
yourself winning the lotto if you find YOUR car's DNA, as these thin papers
usually fell apart thru the years, or are unreadable.
AMC Car Purchase Order
(from 1970)
(Issued May 26th, 1969; reissued July 10th, 1969; reissued August 25th,
1969;
September 25th, 1969; reissued January 2nd, 1970)
AMC Car Purchase Order
(from 1974)
(original from May 1973 including Zone Distribution
Copy & Dealer Copy)
1970 Trans Am Javelin Dealer Order
1970 mid year car bulletin changes #1
1970 mid year car bulletin changes #2
Codes (printed) from Dealer Order Form from 1970 below, the
actual one is above.
*when ordering any option NOT appearing on your Car Purchase Order, please add
Code Number and mark X in normal manner.
==============================================
Engines (70)
CC X CODE OPTION DESRIPTION
01A 128 128HP 199 CID SIX
01E 145 145HP 232 CID SIX
01G 155 155HP 232 CID SIX
01H 210 210HP 304CID V8
01N 245 245HP 360CID V8
01P 290 290 290HP 360CID V8
01X 325 325 325HP 390CID V8
01Y 340 340 340HP 390CID V8
Performance
391
PP1
360 “Go” Package
392 PP2 390 +Go Package”
411 DE dual exhaust system
442 INC 140 MPH speedo & Tach
451 TGD twin grip differential
482 QRM quick ratio manual steering
443 MRM “Machine Package”
768 MCP * “Machine Package red/white/blue”
*Regular Production Colors & Trims Not Available until March 1970
Transmissions
42A
A
Shift Command Column
42C C Shift Command & Console
42M M 4 speed floor shift
42S S 3 speed manual
Power
481 PS Power Steering
491 PB Power Brakes
492 DB Power Disc Brakes Front
501 PW1 Rear window-wagon
504 PW4 Side Windows
505 PW5 Side & Rear Windows-Wagon
Audio
622 RP AM push button radio
623 RFM AM/FM push button radio
631 RS RS rear speaker-radio
632 STR Stereo tape w/manual radio
633 STP Stereo tape player
Convenience
366 CON Console ONLY-Javelin
367 CAS Center armrest & cushion
462 AC all season air conditioning
463 CA command air ventilation
464 ACP air conditioning package
511 SG tinted glass all windows
512 SW tinted glass windshield
521 TS third seat (wagon)
531 ASC cruise command auto-speed
541 ASW adjust-o-tilt steering wheel
572 VG visibility group
574 EWW electric wipers & washers
591 LG light group
731 CST space saver spare tire
381 381 CG convenience group
601 601 EC electric clock
524 524 EWD electric rear window defogger
532 532 RLR luggage rack
507 IAP interior appointment package
Protection Items
641 BG bumper guards
651 UN undercoating or insulating group
769 SMG scuff moldings
711 VFM vinyl floor mats
Appearance
552 CR custom steering wheel
553 SSW sport steering wheel
561 WD wheel discs
562 TC turbo cast wheel covers
563 WC wire wheel covers
565 MAG style steel wheels
506 ERP rocker panel molding
533 SPR roof spoiler
61A BKS black stripe
61B WHS white stripe
61C RES red stripe
61D EPS ext. paint stripes
56E DG décor group
Heavy Duty
661 HDC heavy duty cooling system
671 HB 70 amp battery
685 5A7 cold start package
701 HP handling package
721 BH engine block heater
===============================

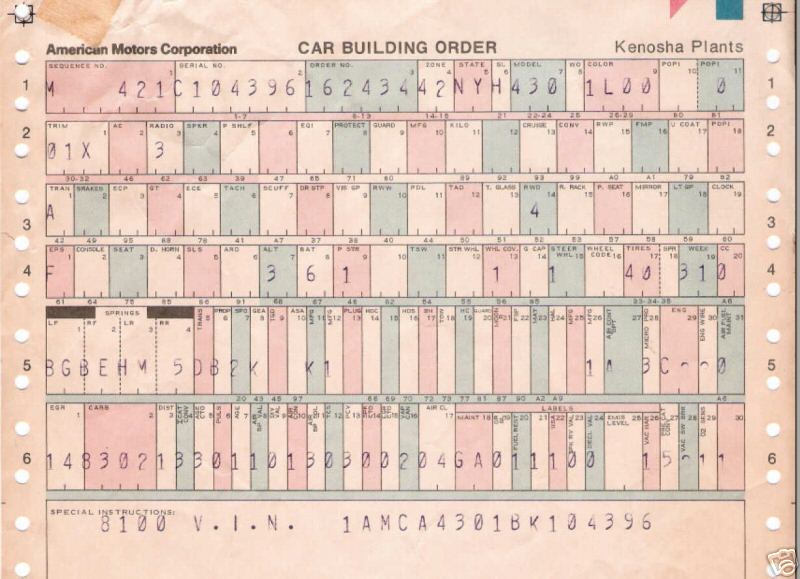

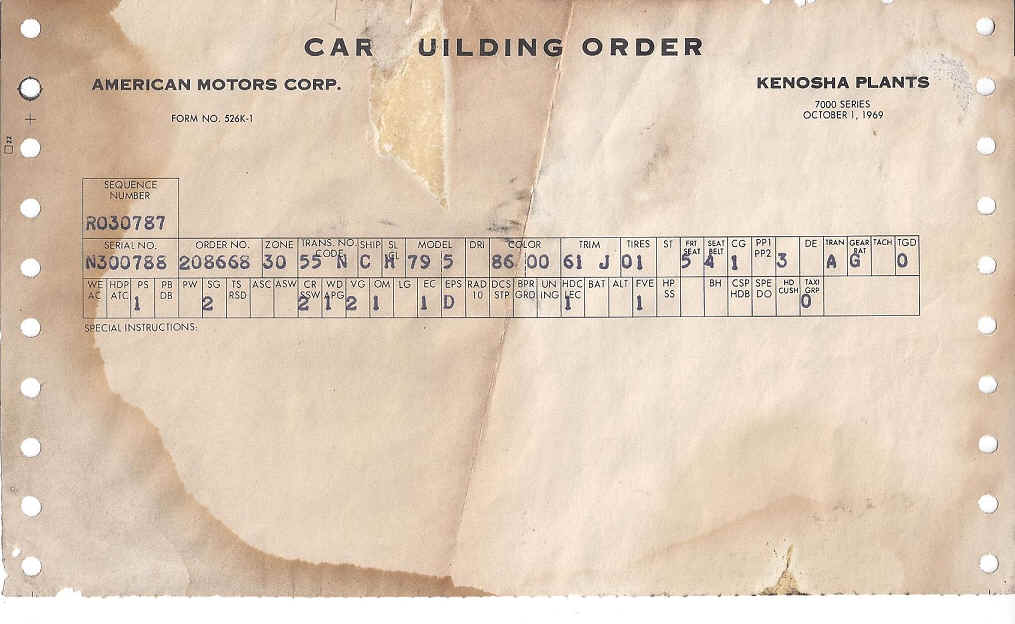

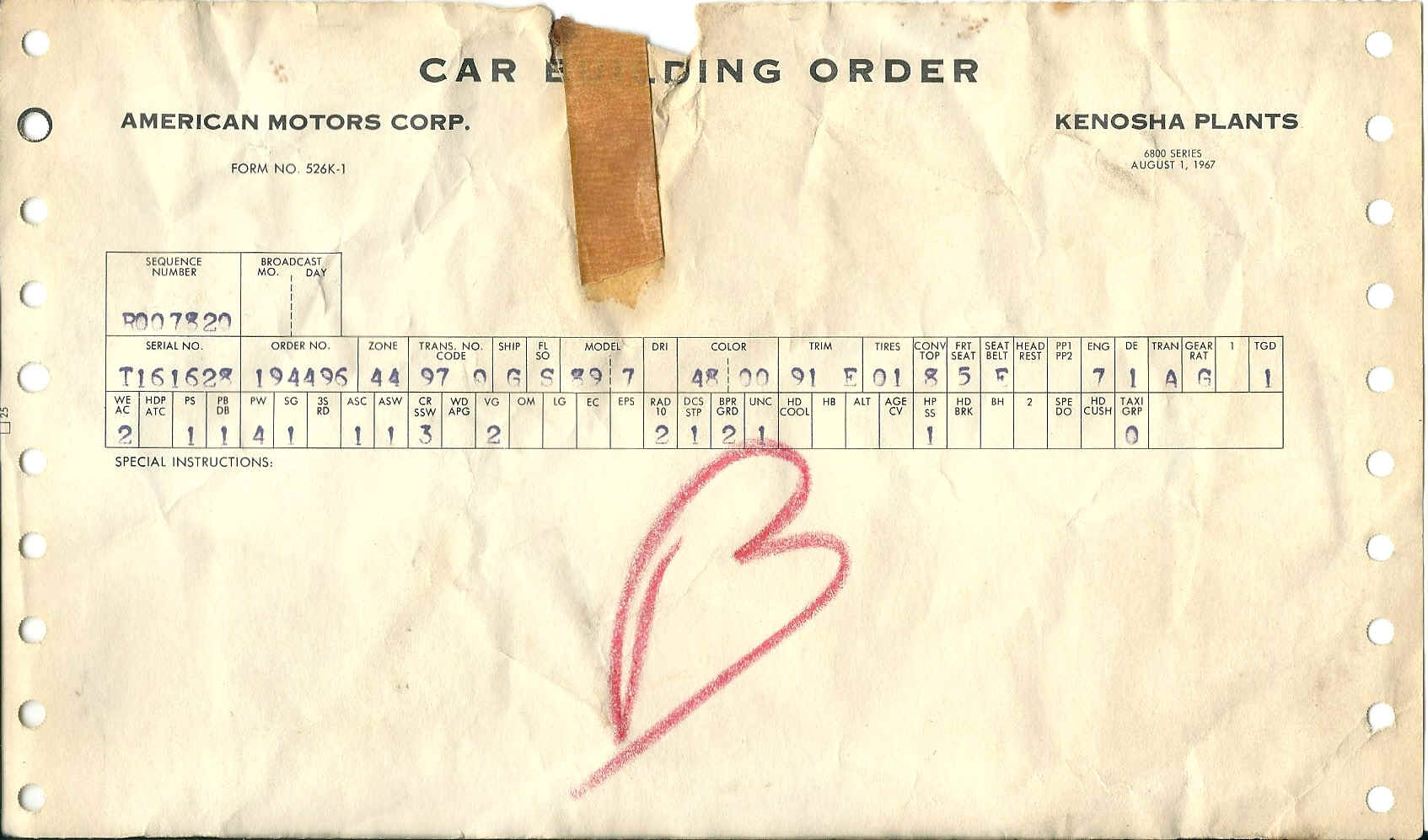

Here are some sample original AMC Build Sheets.

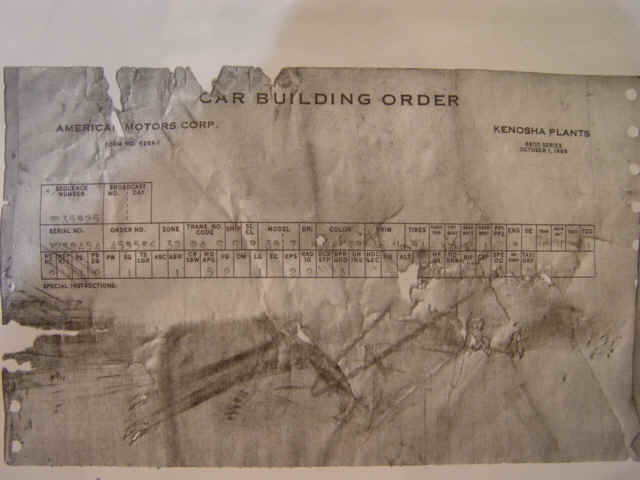

69 California 500 AMX Build Sheet

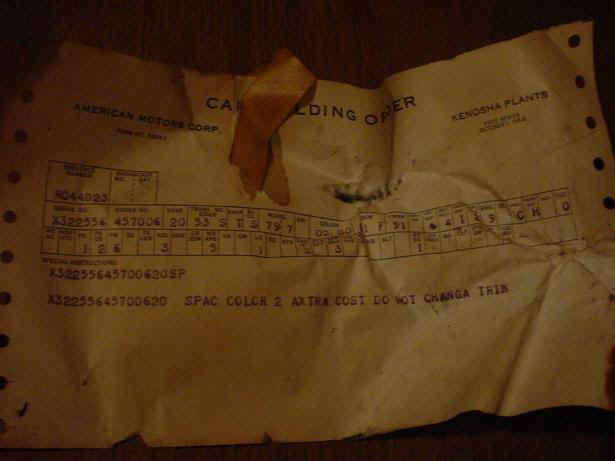

69 Javelin Big Bad Blue Build Sheet

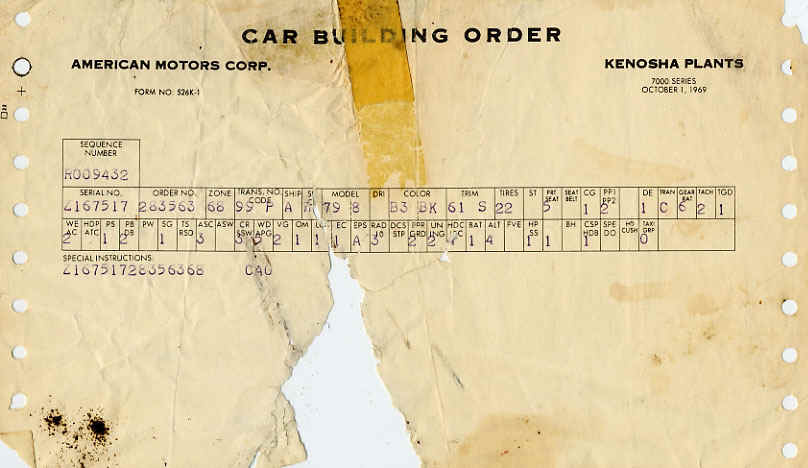

71 AMX Build Sheet courtesy of Larry Williams.

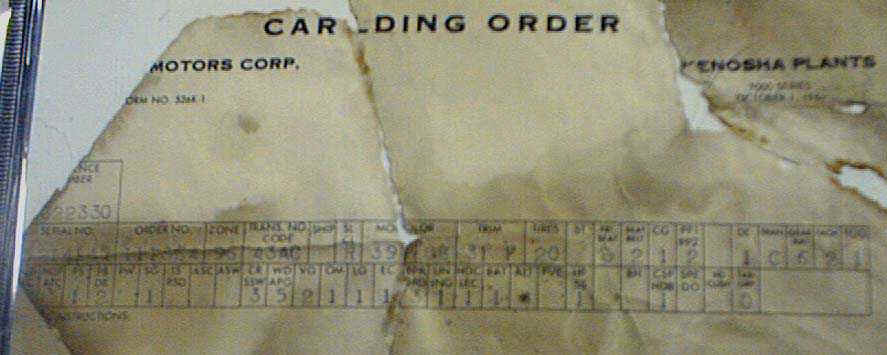

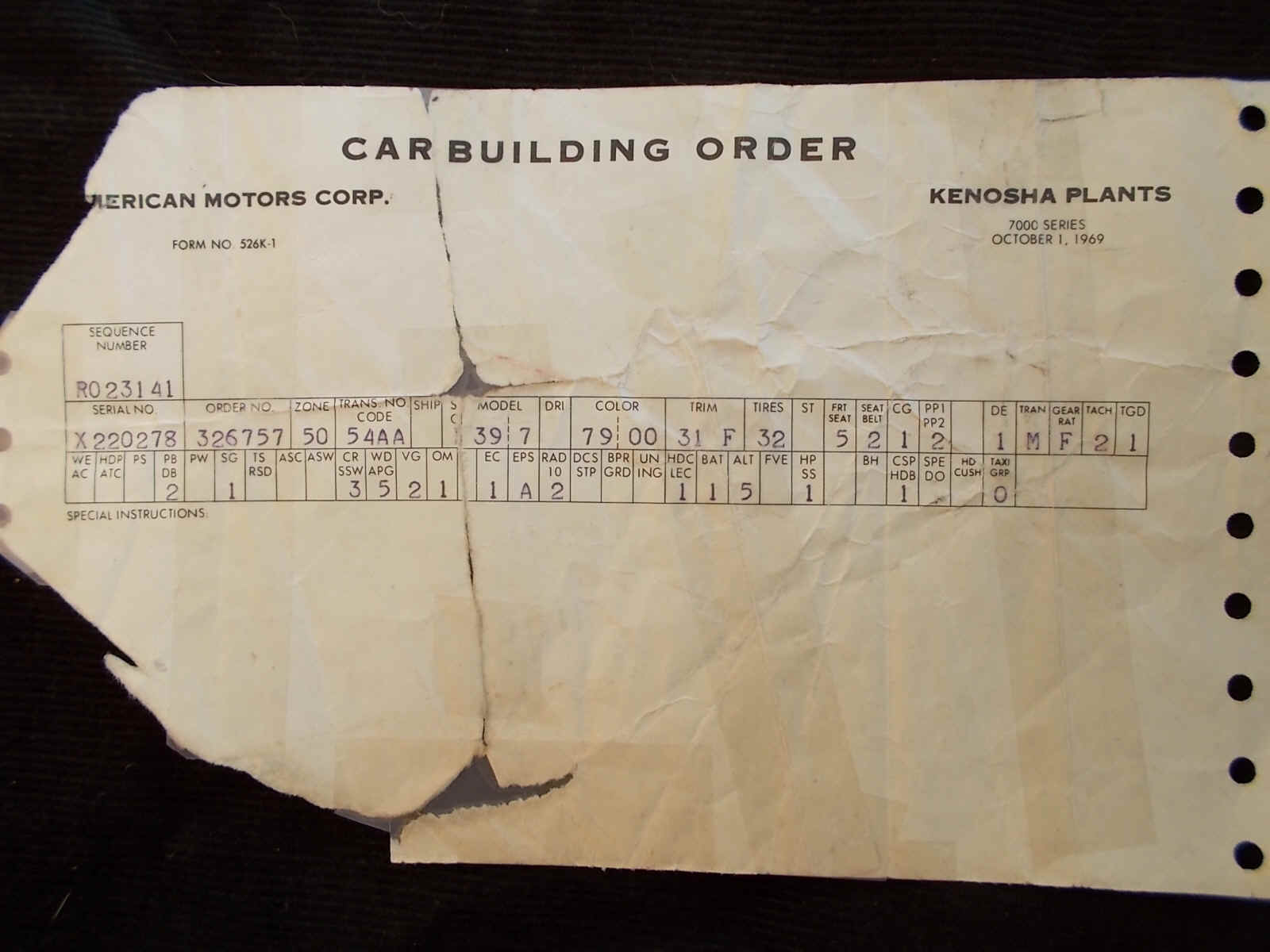

70 AMX Build Sheet
courtesy of Randy Urban.

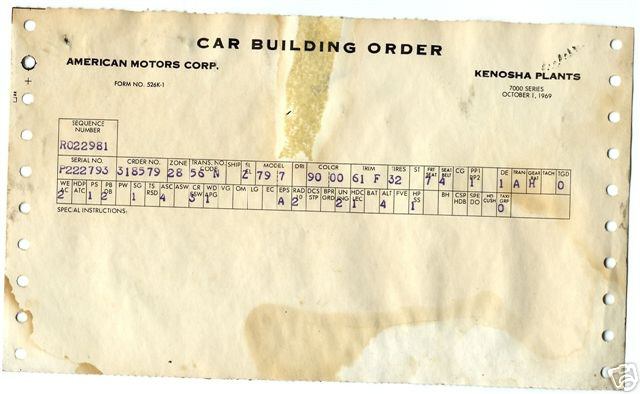

70 Mark
Donohue Javelin Build Sheet

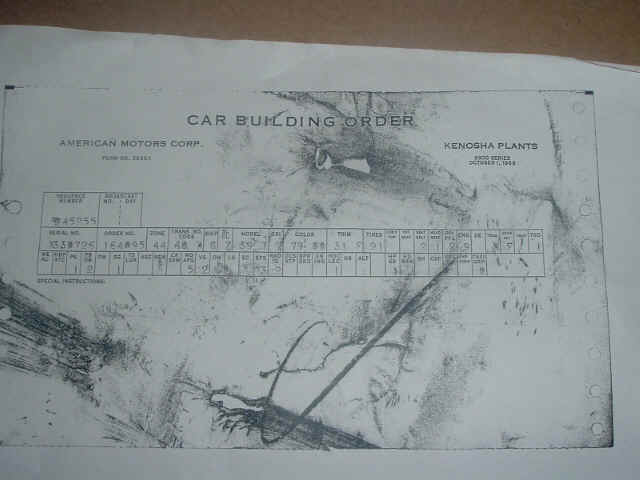

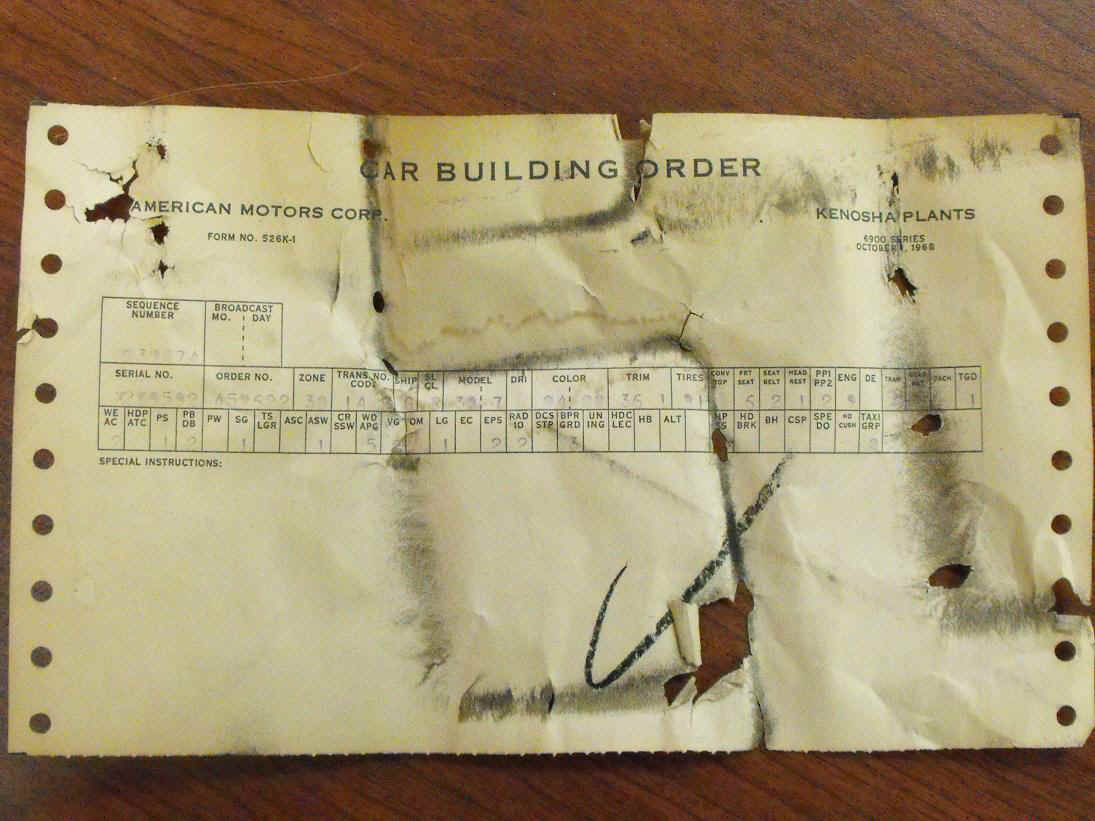

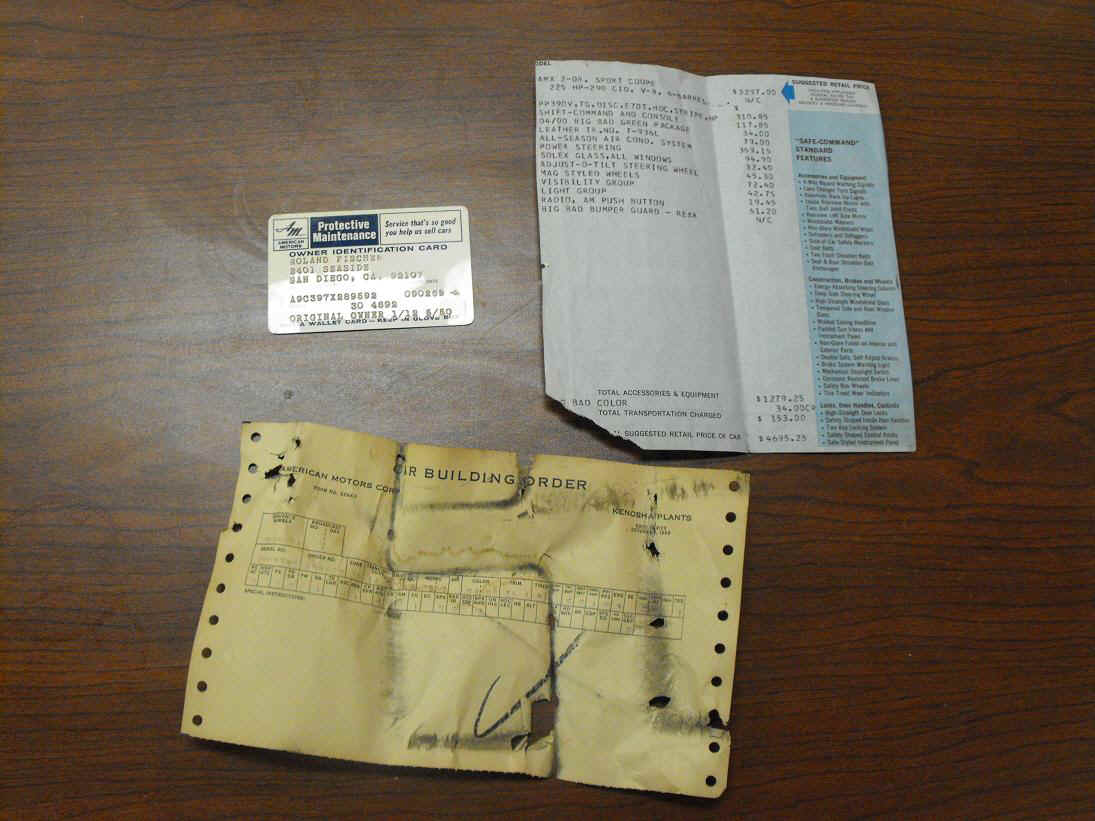

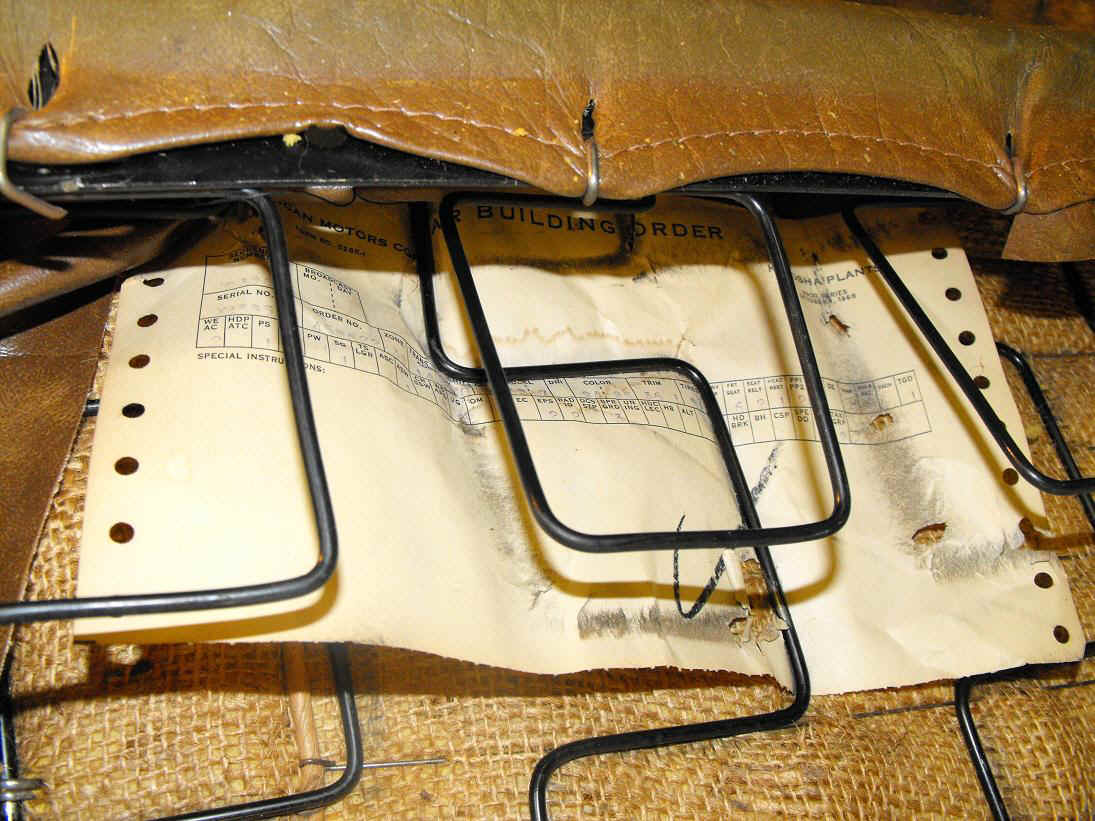

69 AMX Build Sheet courtesy of ??

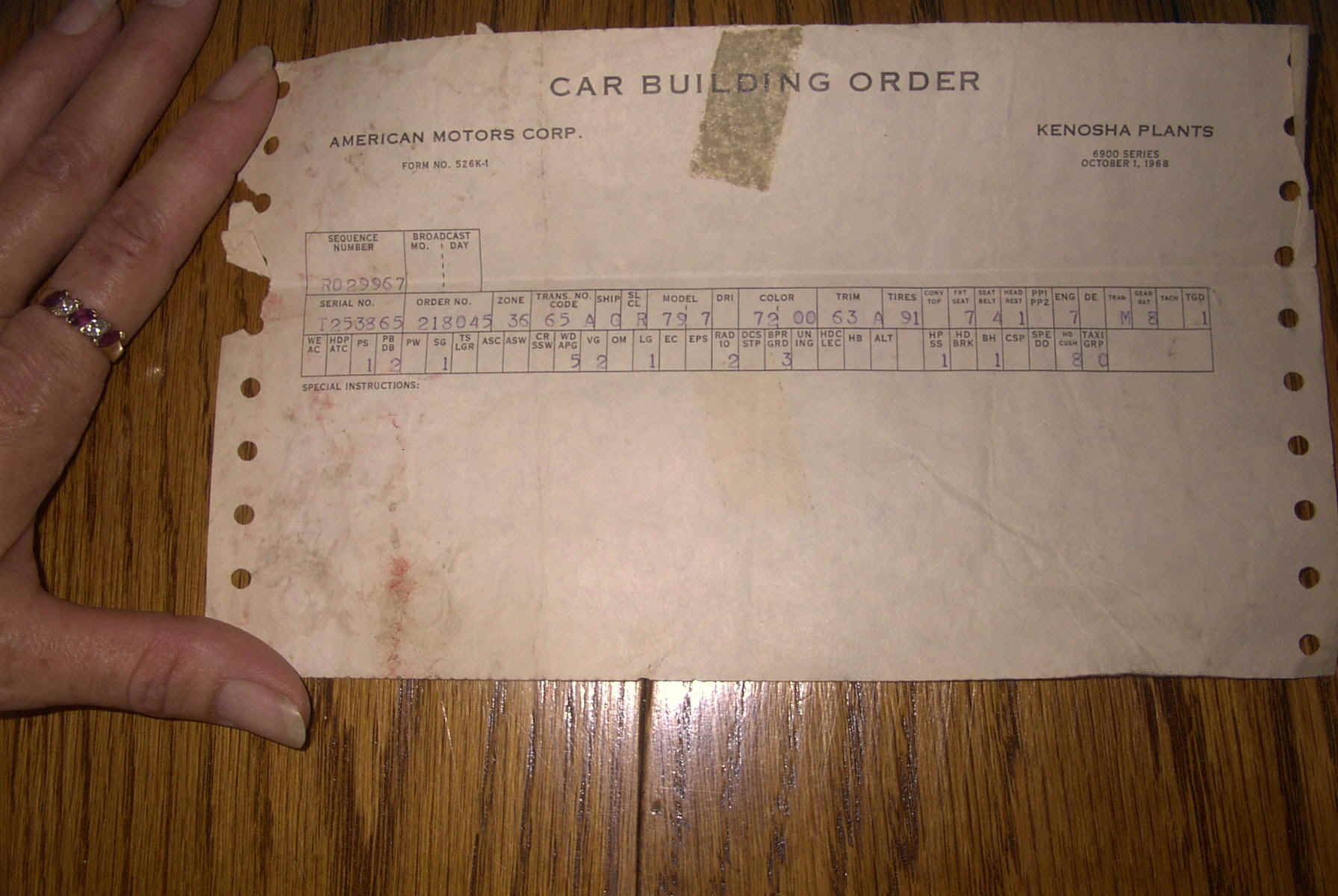

69 Javelin SST
Build Sheet courtesy of Christina Redfern

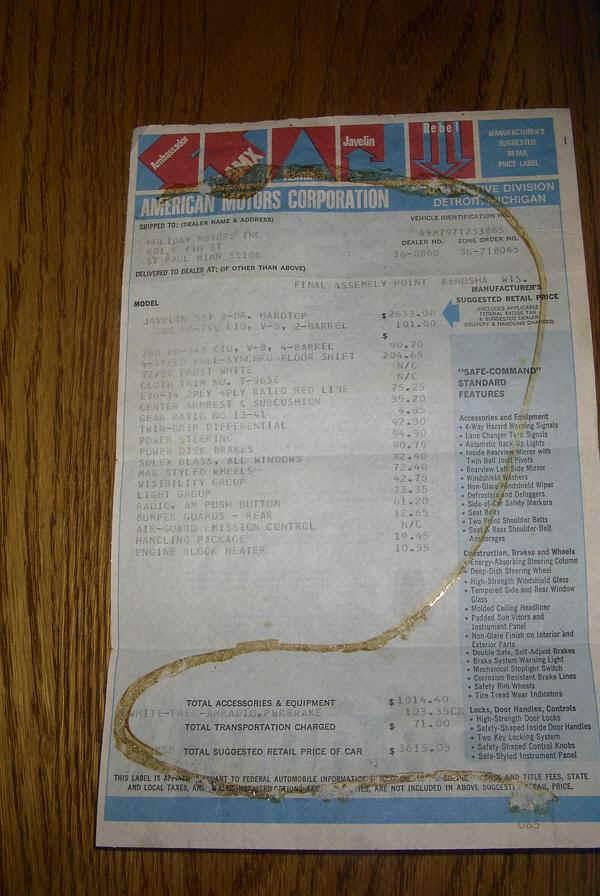

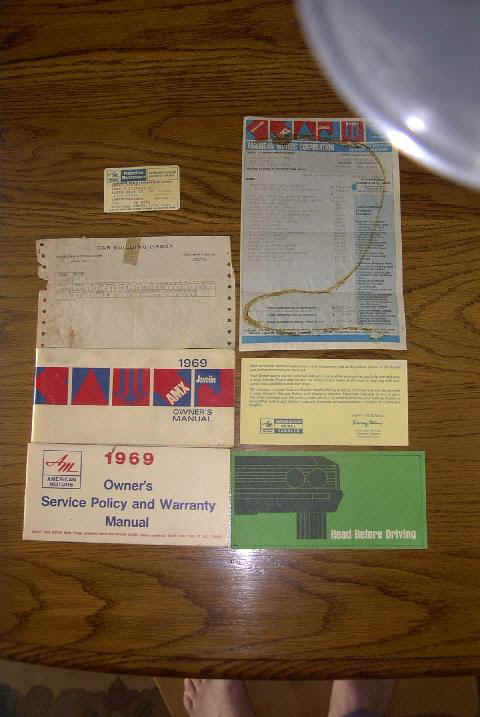

This is also Christina's AMC
Owner ID Card, Window
Sticker, and
original batch of AMC
documents that came with her car. Major score.
Below is a list of some of the codes and letters for what they
stand for. I got SUPER LUCKY finding my own
68 Rebel convertible "Machine's" build sheet, which was stuffed inside the back seat
springs...shoved in there in 1967. AMC build sheets were always dated the
previous year for the following year model; hence my 68 is dated 6800 Series
August 1, 1967. The one you see above is the actual laminated sheet. It took
me three hours to remove this fragile piece of paper in 1986. . It is
laminated today and a laminated copy is displayed whenever I show this vehicle, as many people
have never seen a Build Sheet, and also are surprised to see this was the heaviest optioned off the assembly line of 832 last year AMC rag tops made

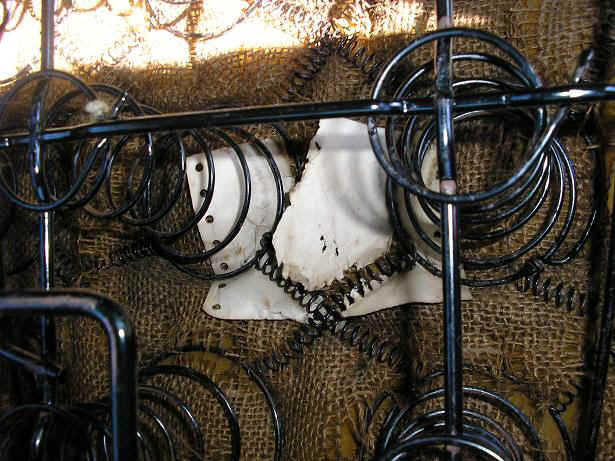

in 1968! This is my
69 Ambassador Build Sheet. And what 95% of people find. Unreadable

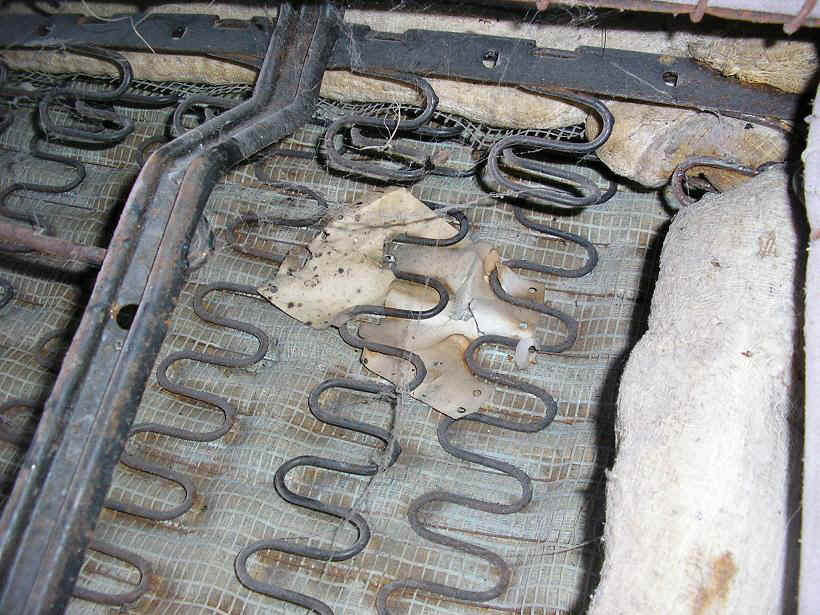

and if you move it, you lose it. I left it. This is my
73 AMX Build Sheet. And while the seats were
professionally recovered, I instructed my upholstery guy to leave it in there.
Again, unreadable. This, like the 69 Ambassador one shown above were both in the
lower rear seat.
In other words, if you "claim" your AMC is
this and that, this is one of the best ways to DOCUMENT that claim. A window
sticker or dealership order form are another.
==================================
The below are mainly for 68-70 AMX & Javelin; although cross codes were used on Rebel, Ambassador, Rambler.
I would still like copies of any model and year build sheet to help further decipher
them, as there is NO "Master List" at this time for those who do
indeed wish to decode one of these! So send them by jpeg or make a good, clear
copy and mail them to me, it will help the whole AMC Hobby!
First line:
SEQUENCE NUMBER- R012345. The order in which the car came down the
body plant assembly line. Found on the door tag next to "BODY". The bottom
number on the tag is often called the Sequence Number, as is rolled off assembly
line, also known as Final Assembly Number and Final Assembly Sequence Number and
on the build sheet it is the Body Number. 68 and 69 only: Mo
Day. For Month and day-not used. Eliminated in 70. No one is really sure how the
Order Number is used, however it has been speculated that each Zone had it's own
number and the factory assigned the Serial Number. According to ex Kenosha AMC
employees, the Body Number was assigned at the body plant BEFORE
that particular body was started.
--------------------
Second Line:
SERIAL NUMBER-X123456 the last 7 digits of the VIN. Also stamped behind
the steering box. The first letter is the engine size, the last 6 are the sequential order number for the factory.
ORDER NUMBER-No idea how to track these. Also on the
sticker price-it would have the 2 digit dealer code, then the 6 digit order number.
My Rebel's above is ZONE 54, the ORDER NUMBER is 314186. It was
built the third week of September 1967. Production for the 68 models started
Aug. 1, 1967. I do not know whether this corresponds to the Dealer Purchase
Order, used when ordering a car. It is also 6 digits.
ZONE- Each zone area had a number of codes assigned to it. This is a
INCOMPLETE LIST of AMC Zones:
AMC ZONES
TRANS. NO. CODE-Unknown, for instance my Rebel has the code "20
AH" It is possible how the car would be transported to the dealer, and the codes were carrier IDs.

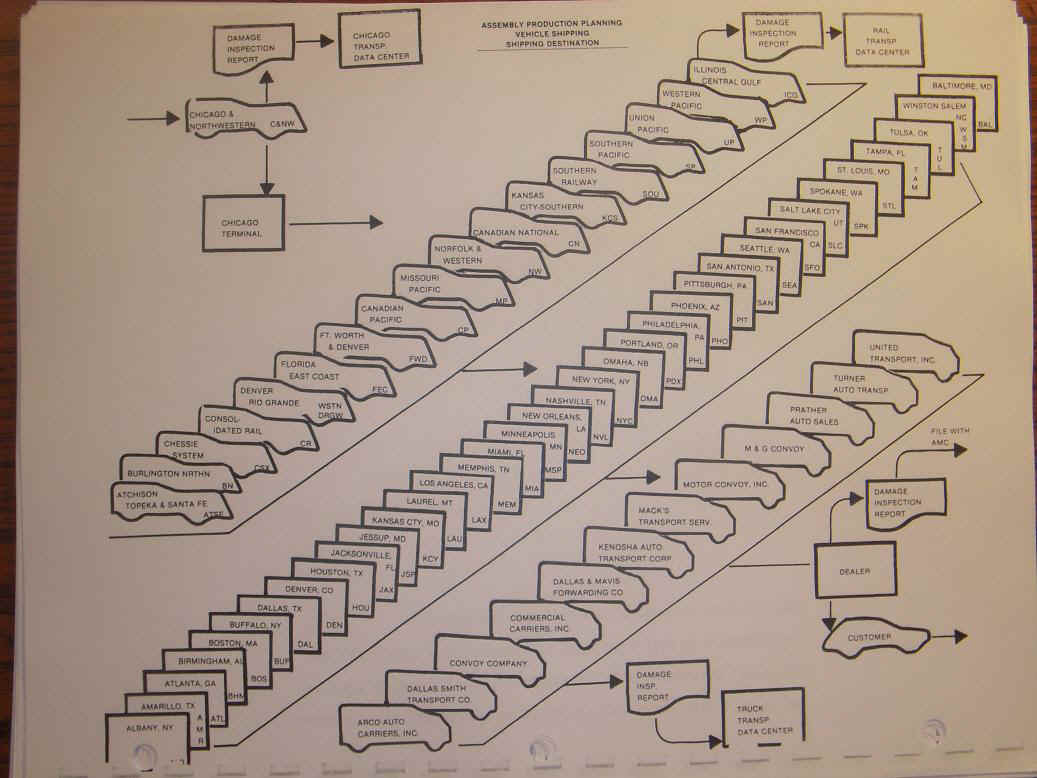

SHIP-Unknown, but 4 codes of "G", "R",
"T", "A". Probably stand for: Ground, Rail, Truck, Air. Ground
could be
perhaps the dealers picked them up themselves, which was allowed until around 1971. For instance, the Rebel was shipped to American Motors storage
facility near the Port of Houston by ground. The facility, which is still there
but used for Audi and Toyota, is 1225 McCarty Drive, Houston, Texas.

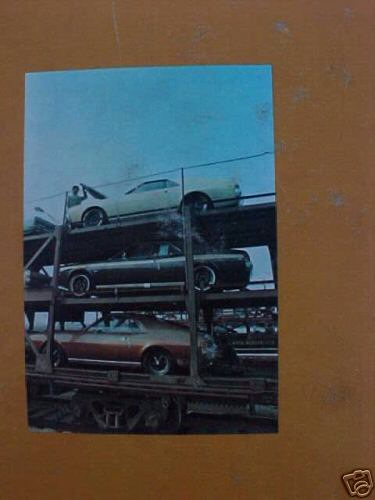

This is a example of R showing a new
Javelins and AMXs on a railcar. This is NOT 1974, but 2005
when I sold several of my Gremlins;
headed to Michigan. This photo is of T,
several
brand new 1959 Ramblers destined to
the dealership by truck. Another example of T

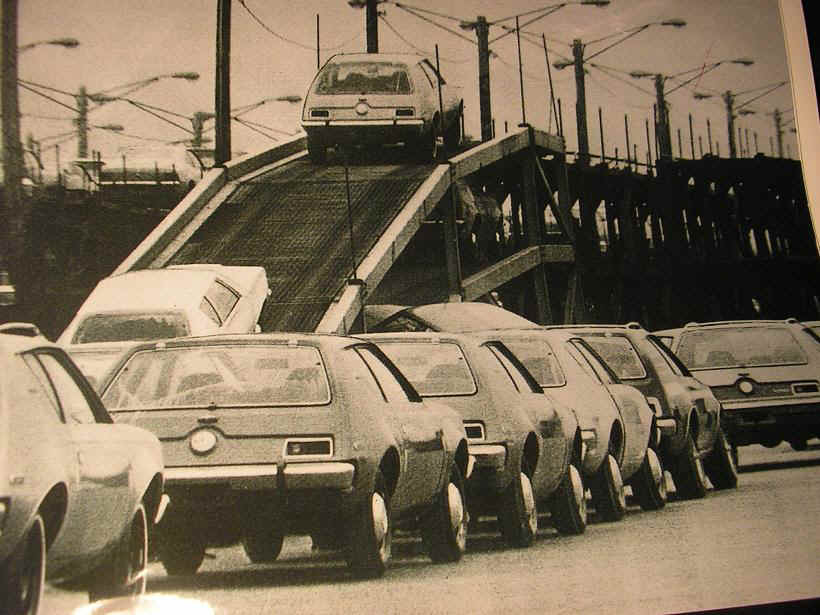

is this marshalling yard in Milwaukee
in 1972, with dozens of Gremlins headed to new homes. This photo
shows the
very first 57 Rambler Rebel on the
production line, well before its' destination.
SL CL-(Sales Class- 69-70)-If a car is fully loaded it is doubtful it was
ordered for the showroom-it was probably customer ordered. However, a
"D"
would be for dealer stock, a "Z" would be for zone use, and a
"R" would be a
customer or retail order. Also have an "S". but don't know why. In 68
the
heading was "FL SO". What is this? See above 68 build sheet.
MODEL-79 7 (Javelin SST) 75 5 (Javelin base) 39 7 (AMX) Matches VIN and
Door Tag. The Rebel of course is 17-7. These should match the 4th, 5th, 6th
digits of the VIN.
DRI-Never have seen any code in one.
COLOR- "04 00" For instance: The 04 is Big Bad Green, the
00 is no other color, such as two tone, roof color, shadow hood on AMX etc. The
"A" from the code on the door is for Acrylic, which was the standard).
Red with Shadow Mask 70 AMX is 39 08. My Rebel above is 47-00. My 71 Matador
Limelight Green car however, the door tag is A7-00 on the door tag. Matches door
tag. The 00 also could mean vinyl top delete.
AMC
Paint Codes & Charts.
TRIM- 61 L (Black Leather. Matches door tag). E-Corduroy, F-Vinyl.
1=black,
3=blue, 4=green, 5=red, 6=brown, plus others. See "production codes"
.
TIRES-20-E60 x 15 (15" on Machine rims), 28-F70 x 14 RWL, 32-E70 x
14 RWL, 37 E70 Redlines. The above is for 1970. There were 22 different tires for 68 models, 20 for 69, 21 for 70.
CONV TOP. & ST- Used to 68, however, can be seen also on many
1969 AMC Build Sheets, even though 1968 was the last year AMC would produce a
convertible. See several examples above. AMC added it in 70, unknown.
FRT SEAT-In 1970 -7 Front buckets. 5 without
center
cushion) 6 for split buckets on the Rebel. Have seen many left blank by AMC.
SEAT BELT-Possibility because four anchoring sections-the rear
middle anchors with the outboard ones. All AMXs say "2" here, all
Javelins say
"4". cars built prior to Jan 1 68 did not need a shoulder belt. Few
68
AMXs so equipped, and a number of Javelins had a small plug in the panel). The
Rebel convertible shows a 6, but it is a original 8 piece belt system. Others,
which would have a a 10 piece belt system, like Larry William's 71 AMX above,
the space is blank.
1968/9-HEADREST. 1 with, blank without. Standard on all 69s. Changed for
1970.
1970-CG- 1 (Convenience Group) Blank-without.
PP1 PP2- 2 Power Pak, also known as the Go Pak.
360s is 1, 390s a 2.
Blank on others, including 68-69 290 AMX/Javelin. *note PP1 & PP2 were
used to end of 74 production.
ENG, 7=343 9=390. Removed 71.
DE- 1 Dual Exhaust. 1=dual exhausts; blank=single exhaust.
TRAN-Transmission. M is 4 speed floor, C=floor automatic, A=column
automatic. Same as in VIN
Third Digit.
GEAR RAT- Unknown(?): AMX with manual trans with 3.54 gears is an "F".
Javelin with 3.91 gears is a "9". There is NO correlation between
gears and
rear end tags, though. A 70 Javelin with 3.15 posi and automatic is an
"H" a 70
6cyl 3.08s is a "B". My Rebel above is a 2:87 sports a "G".
There are 7 codes in 68, 12 in 69 and 70.
Rear
End Gear Ratios Tag ID.
TACH-2 (Blank if none; On 68 the heading is "1". Unk.
TGD-1 Twin Grip Differential. Blank if not posi-trac
---------------------------------
Third line:
WE AC-Weather Eye Air Conditioning. Blank if none, 9=Command Air,
2=factory A/C.
HDP ATC- Heavy Duty Package/Auto Trans Cooler. Blank on all V8 Javs and
AMXs. 3 is 6 cyl Javelin with trans cooling lines.
PS-1=Power Steering, 3=Quick ratio, Blank=manual.
PB DB- Power Brakes Disc Brakes. 2=Disc, 1=Power Drum. Blank=manual
drum.
PW -Power Windows. Not available on Javelin or AMX; my Rebel shows a 4,
as both doors, and both 1/4s are electric windows. 1=rear wagon window only, 2=side windows,
3=side and rear wagon windows.
SG-Solex Glass. 1=all windows tinted, 2=windshield only. Blank-No tint.
3S RD (68), TS LGR (69), TS RSD (70)-blank Third Seat, Rear
Swing Door.
Used for wagons only. LGR is Luggage Rack, which was factory installed
beginning Jan 2, 1970 though the AMX & Javelin code was RLR-Rear
Luggage rack.
ASC- Blank Auto Speed Control, or Cruise Command. Not available on Jav or
AMX,
though there is one pictured in the 70 owner's manual, First Printing. Rebel,
Ambassador, Matador would show a 1 if equipped.
ASW-Adjust-O-Tilt Steering Wheel. 1=tilt column, blank=non tilt .
Don't know column shift tilt code.
CR SSW-3 Custom Steering Wheel-CR, or Sport Steering Wheel Rim Blow.
3=Rim Blow for 70. Blank on 68/9 as it is part of SST package on Javelin.
WD APG- Wheel Discs, Appearance Group. 1=hubcaps, 2=Turbocast
Wheels,
3=Wire Wheels, 4=Appearance Group Package, 5=Mag Wheels-14". 6 possibly
15" styled road wheels or 15" 8 slot rallye rims.
VG- Visibility Group 2=vis group option, blank=no vis group. 1 is for other
models
with electric wiper only option
OM- Outside Mirror. blank is manual, 1=driver's remote, 2=dual
mirrors, w/driver's remote.
LG-Light Group. 1=light group, blank=no light group.
Includes low fuel warning
for 1970 and 1971.
EC-Electric Clock-1=clock, blank=no clock. Dealer installed for 68 in
Rally Pak, so won't be on the build sheet. My Rebel came with the factory clock
but this is blank for some reason.
EPS-Exterior paint stripe. Number states color and type. A, B,
code is for
"White Rally Side Stripes", though there were different stripes, and
changed for 71-up.
RAD 10- Radio. 3=AM-FM, 2=AM pushbutton, 1=AM no buttons,
blank-no radio.
DCS STP-1 Duo Coustic Sound, Stereo Tape Player. 1=Rear Speaker, 2=stereo
8 track with AM radio,
3=8 track only and there would be a radio code also above for 3. Unknown code for 1970 fader switch.
BPR GRD-3-Rear Bumper Guard. Same whether chrome or painted or rubber.
1=front, wagons. 2=front and rear.
UNC (1968), UN ING (69-70)-1=Undercoating, 2=Insulation Group.
Blank=no undercoating.
HD COOL (68), HDC LEC (69-70)-1=Heavy Duty Cooling. 2=Less Engine
Coolant (no antifreeze).
HB (68) BAT (69-70) 1 AMP with A/C. 5-70 AMP less A/C. Blank if
standard size. Possibly others.
ALT- Alternator. Blank if standard, 4 if 55 amp. 70 unknown, possibly
many others.
AGE CV (68), Blank (69), FVE (70)-Fuel Vapor Emission control.
1970 Calif
only-was a filter in back of/under 1/4 panel near gas tank.
AGE-Air Guard Equipment
HP SS 1 Handling Package, Heavy Duty Shocks and Springs Blank=no handling
package..
HD BRK Heavy Duty Brakes in police or taxi. (fleet vehicles)
BH-Engine Block Heater; 1=heater, blank=no block heater
2 (68), CSP (69), CSP HDP (70) unknown
SPE DO- Special Dealer Order Codes.
HD CUSH-For fleet sales (taxi/police) stronger seat springs.
TAXI GRP-Taxi Grip. I do not know why my 68 Rebel convertible has
a 9 here.
SPECIAL INSTRUCTIONS: There is a small square to the immediate right of
TAXI GRP in 1968. On some it shows SPECIAL INSTRUCTIONS. Never seen
anything in this space.
SPR roof spoiler 69-70 Javelin. ERP simulated exhaust rocker panel
molding.
EWD starting Jan 2, 1970 a heated rear window was factory
installed.
SMG is Side Scuff Moldings; "added" to Javelin (possibly the
missing MOD code above) but also used for Rebel & Ambassador.
VFM is clear vinyl floor mats; which were factory installed; 2
Front only-AMX, 4 for Javelin.4 for other models.

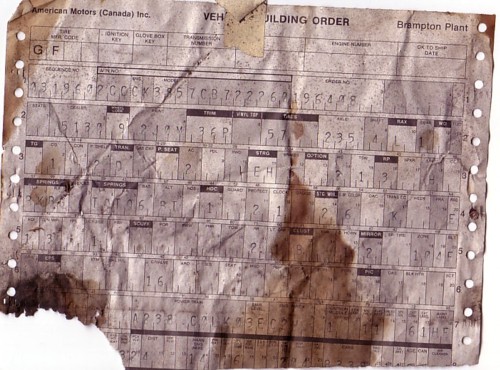

As I mentioned above, some cars had TWO BUILD SHEETS. This is both of them from my 82 Eagle wagon, that I bought from the original owner.
More Build Sheets:

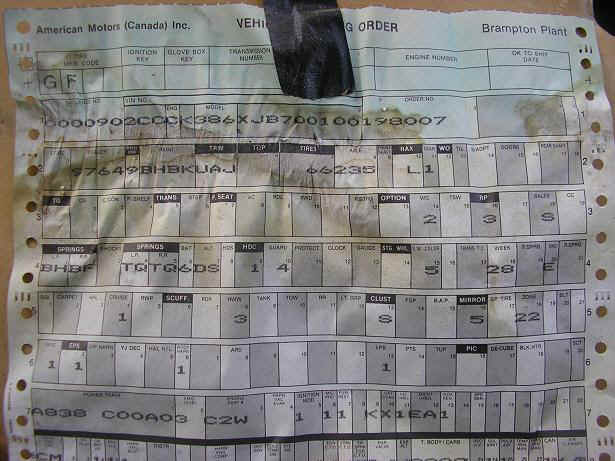

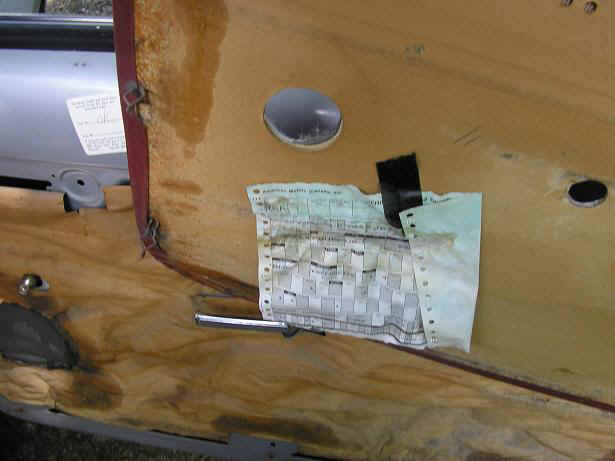

Worth noting: this is my wife 88 Eagle Build Sheet. Of the 2306 last year Eagles produced, her car is #100. I was checking the speaker inside passenger front door and there it is, that is original piece of black tape and how AMC affixed it! Door photo. Close up of 88 build sheet.
